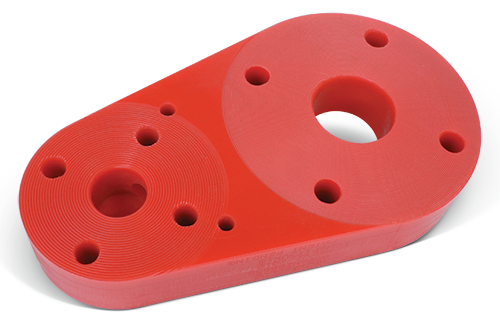

Parallel Instrument Tee

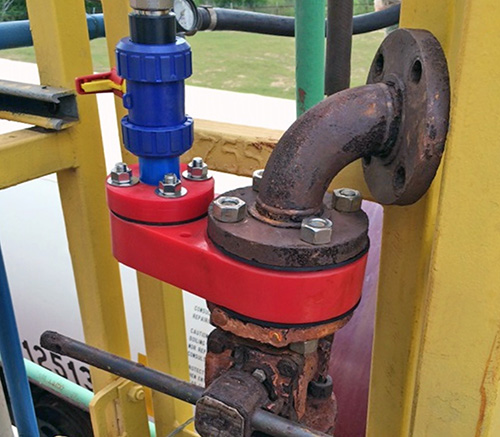

Salco’s Parallel Instrument Tees can be used in place
of a standard tee, and reduce overall length to allow
for sample parts and air purge lines to be applied.

Variety of Sizes

Economical and lightweight products that can easily be installed by one worker. Salco's Parallel Instrument Tees are produced from Salco PE(UHMWPE), making the fitting six times more abrasive resistant than its steel counterpart.

Tees are available in a variety of sizes, flanges can be constructed to suit any inlet/outlet application. Fittings and flanges can withstand temperatures between -40°F and +180°F. Concentric serrations on the flange enables positive sealing of gaskets.



Customizable Sizes Available

* Available in 4-bolt 150 lb and 3-bolt safety vent bolt patterns.

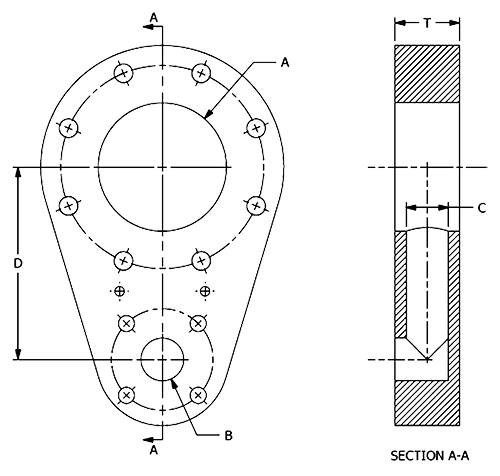

   Size
   A
    B
   C
   D
   T

   1" x 1"
   1.00"
   1.00"
   1.00"
   5.38"
   2.00"
   1½" x 1"
   1.50"
   1.00"
   1.00"
   5.38"
   2.00"
   1½" x 1½"
   1.50"
   1.50"
   1.00"
   6.00"
   2.00"
   2" x 1"
   2.00"
   1.00"
   1.00"
   5.63"
   2.00"
   *2½" x 1"    2.50"    1.00"    1.00"    6.13"    2.00"
   *2½" x 1½"    2.50"    1.50"    1.00"    7.50"    2.00"
   3" x 1"    3.00"    1.00"    1.00"    6.19"    2.00"
   3" x 1½"    2.50"    1.50"    1.00"    7.50"    2.00"
   3" x 1½"    3.00"    1.50"    1.00"    7.50"    2.00"
   3" x 2"    2.50"    2.00"    2.00"    7.50"    3.00"
   3" x 2"    3.00"    2.00"    1.00"    7.13"    2.00"
   3" x 2"    3.00"    2.00"    2.00"    7.13"    3.00"
   4" x 1"    4.00"    1.00"    1.00"    7.06"    2.00"
   6" x 1"    6.00"    1.00"    1.00"    8.00"    2.00"
   6" x 2"    6.00"    2.00"    2.00"    9.00"    3.00"
   10" x 1"    10.00"    1.00"    1.00"    10.75"    2.00"
