Trinity I/ Thrall

Trinity/Thrall Pressure Differential Car

Typical 5-Hopper Arrangement Replacement Parts


Outlet 1 & 2      |      Outlet 3 & 4      |      Outlet 5      |      Car Roof      |      Standpipe




   Number    Part Name    Part Nunber

   58    3” Pipe (In Feet)    P3A40
   59    5” Pipe (In Feet)    P5A40
   60    Blind Flange Assembly    PD3BF02A
   63    3” x 6” Compression Coupling    PD356CC8
   64    Air Manifold Assembly “A” End    PD3AAM01
   65    Air Manifold Assembly “B” End    PD3AAM02
   68    Gauge Box Assembly    PDGB2A
   *    ½” - 13” x 3” U Bolt W/Nuts    SP8465
   *    ½” - 13” x 5” U Bolt W/Nuts    SP8466
     * Parts not shown above

     Pressure Gauge Replacements
   Number    Part Name    Part Nunber

   66    0-30psi Liquid Filled, Back Connection W/Flange    PD4LFGB
   *    0-30psi Dry, Back Connection    PD1010GB
   *    0-30psi Dry, Lower Connection    PD1010GL
   *    0-30psi Silicone Filled, Back Connection W/Flange    PD4LFGFB
   *    0-30psi Silicone Filled, LINE Back Connection    W1212L
   *    0-30psi Silicone Filled, TANK Back Connection    W1212T
     * Parts not shown above
     Note:
     Piping is aluminum. Different materials available by request.
   Gaskets listed are white FDA. Different gasket materials are available if requested.

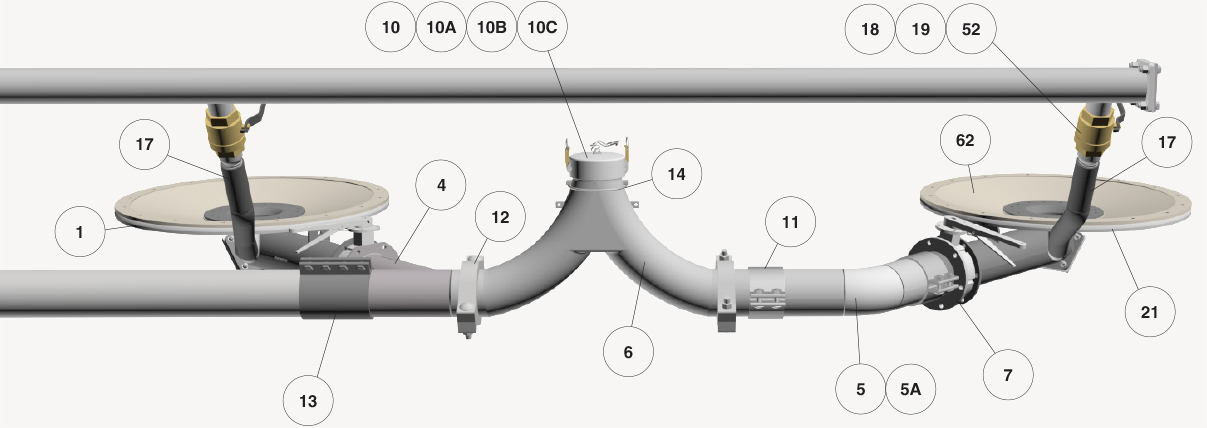

Outlet 1 & 2



   Number    Part Name    Part Nunber

   1    Aerator Hopper Assembly (left)    PD1AHLA
   4    5” Discharge Lateral w/ Groove    PD5ADL02
   5    5” Pipe Bend Assembly    PD5APB01
   5A    5” Pipe Bend Assembly    PD5APB02
   6    5” Y Pipe    PDA5Y
   7    5” Butterfly Valve    WBV5A
   12    5” Swivel Pipe Fitting    PD577CA
   13    5” x 8” Long Compression Coupling    PD558CC8
   14    Shackle And Chain    PD5YCSA
   17    2” Air Hose (in feet)    H2R
   18    2” Ball Valve    VBLF20B
   19    2” Hose Barb    HB2A
   21    Aerator Hopper Assembly (right)    PD1AHRA
   52    2” Pipe Nipple    N23A
   10    5” Aluminum Dust Cap Assembly    PD5ADCA
   10A    5” Plastic Dust Cap Assembly    PD5PDCA
   10B    5” Aluminum Dust Cap Assembly w/ Crossover Arms    PD5ALCA
   10C    5” Plastic Dust Cap Assembly w/ Crossover Arms    PD5PLCA
   11    5” x 4” Long Compression Coupling    PD554CC8
   *    2” Hose Clamps     HCP0427692
     * Parts not shown above
     Note:
     5(PD5APB01) does not require welding, 5A(PD5APB02) requires welding.

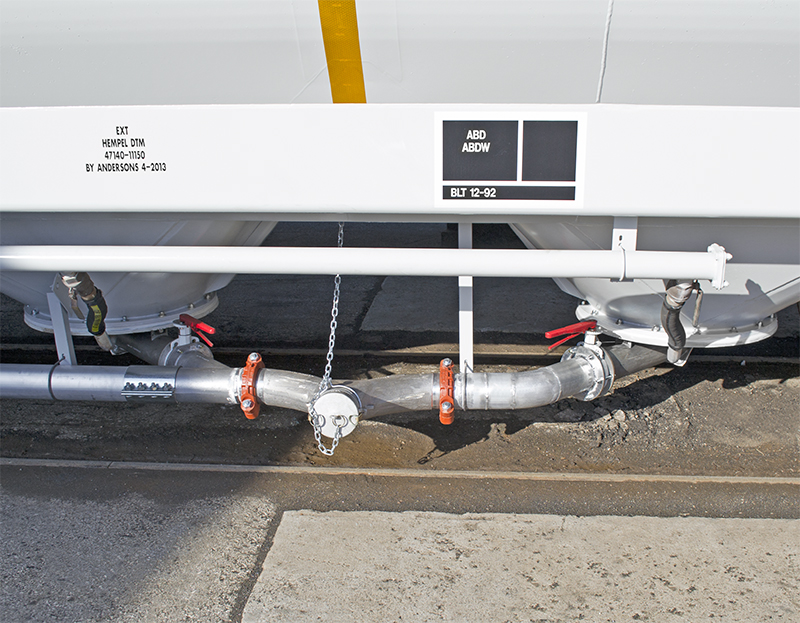

All photos are courtesy of The Andersons - Maumee, OH
www.andersonsinc.com

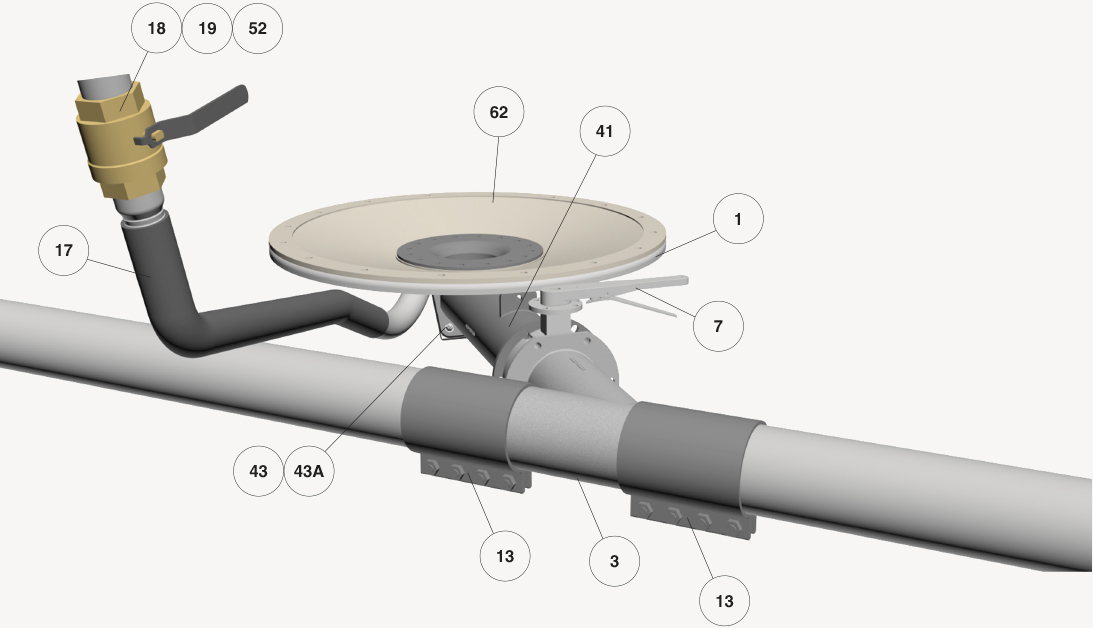

Outlet 3 & 4



   Number    Part Name    Part Nunber

   1    Aerator Hopper Assembly (left)    PD1AHLA
   3    5” Discharge Lateral    PD5ADL01
   7    5” Butterfly Valve    WBV5A
   13    5” x 8” Long Pipe Coupling    PD558CC8
   17    2” Air Hose (in feet)    H2R
   18    2” Ball Valve    VBLF20B
   19    2” Hose Barb    HB2A
   52    2” Pipe Nipple    N23A
   41    5” Discharge Tube    PD5ADT01
   43    6 ½” Cover Plate Assembly    PD5ACPA
   43A    6” Cover Plate Assembly    PD545ACPA
   62    Aerator Pad    PD1AP3C23
   *    2” Pipe Plug    TC2P
   *    Aerator Hopper Bolt Kit    PD1PADKIT1
   *    2” Hose Clamps    HCP0427692
     * Parts not shown above

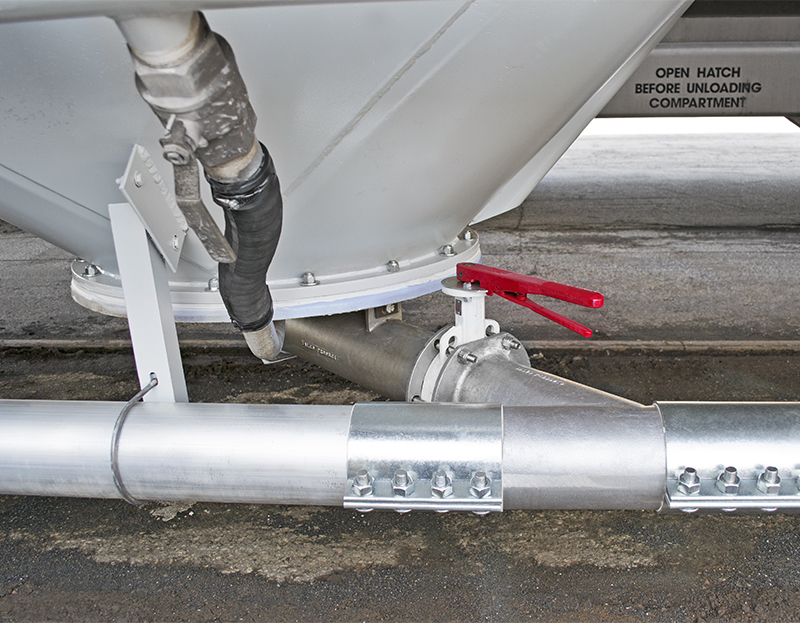

All photos are courtesy of The Andersons - Maumee, OH
www.andersonsinc.com

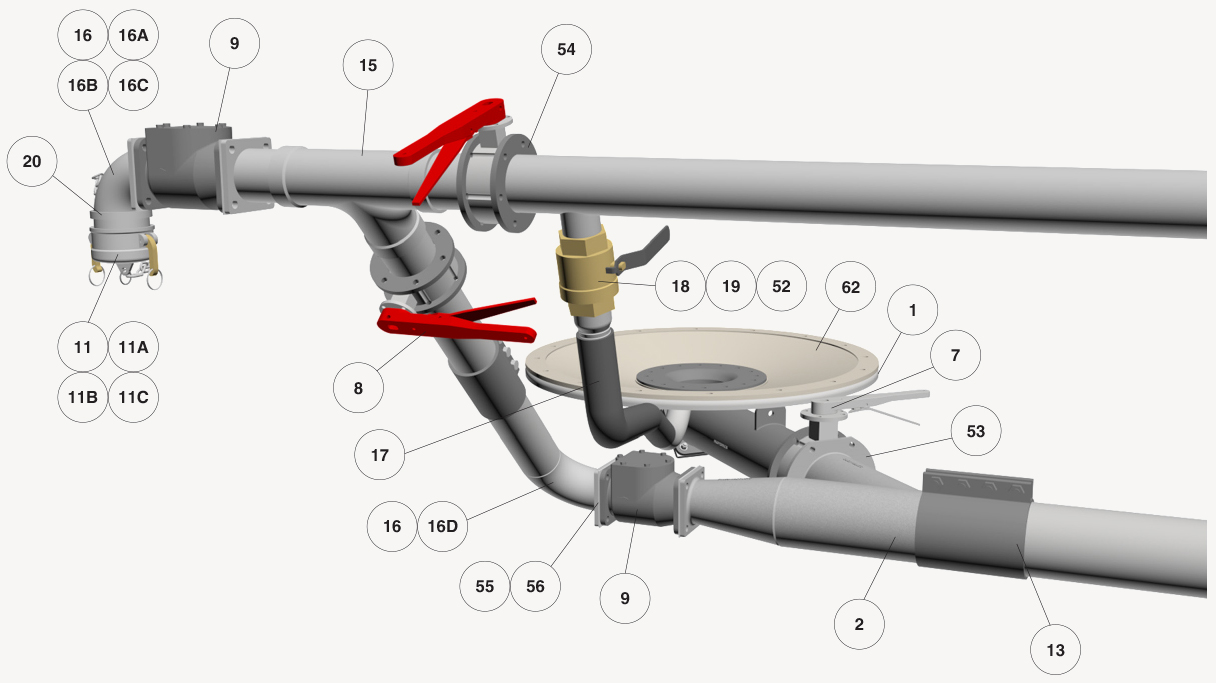

Outlet 5

   Number    Part Name    Part Nunber

   1    Aerator Hopper Assembly (left)    PD1AHLA
   2    5” Discharge Lateral w/ Reducer    PD5ADL01F
   7    5” Butterfly Valve    WBV5A
   8    3” Butterfly Valve    WBV3A
   9    3” Check Valve    DV3030SQ-IMP
   13    5” x 8” Long Compression Coupling    PD558CC8
   15    3” Belled Tee    PD3ABT02
   17    2” Air Hose (in feet)    H2R
   18    2” Ball Valve    VBLF20B
   19    2” Hose Barb    HB2A
   20    3” Kam Weld Fitting    PT30AWSAL
   52    2” Pipe Nipple    N23A
   53    5” Round Flange    PD5AF
   54    3” Round Flange    PD3ARF
   55    3” Square Flange    PD3ASF
   56    3” Square Flange Gasket    PD3SG02

   Number    Part Name    Part Nunber

   11    3” Aluminum Dust Cap Assembly    PD3ADC2A
   11A    3” Plastic Dust Cap Assembly    PD3PDC2A
   11B    3” Aluminum Dust Cap Assembly w/Crossover Arms    PD3ALCA
   11C    3” Plastic Dust Cap Assembly w/Crossover Arms    PD3PLC2A
   16    3” Flanged 90° Elbow    PD3A90F01
   16A    3” Flanged 45° Elbow    PD3A45F01
   16B    3” Flanged 90° Elbow w/Kam Groove    PD3A90F01A
   16C    3” Flanged 45° Elbow w/Kam Groove    PD3A45F01A
   16D    3” Flanged 90° Elbow w/Pipe    PD3A90F02
   62    Aerator Pad    PD1AP3C23
   *    3” Dust Cap Gasket    PD3DCGW
   *    2” Pipe Plug    TC2P
   *    Bolt Kit    PD1PADKIT1
   *    2” Hose Clamp    HCP0427692
   *    3” Round Flange Gasket    FG478602
   *    5” Round Flange Gasket    PD5FG77802
       * Parts not shown above

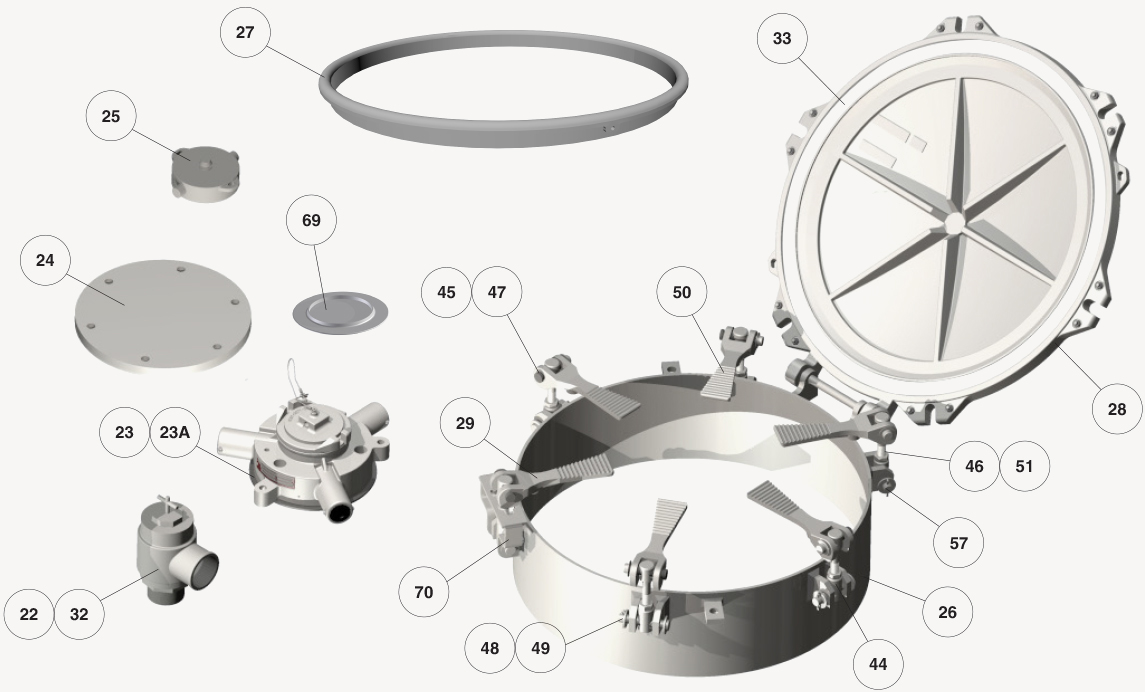

Car Roof


   Number    Part Name    Part Nunber

   22    17 psi Pressure Relief Valve    PDPRV2
   23    Plastic Safety Vent Housing (Female)    PDSVF550FA
   23A    Plastic Safety Vent Housing (Male)    PDSVF550MA
   24    Blind Flange Assembly    PD3SPBF02A
   25    3” Air Inlet Cap    PD3AIC
   26    20” Stainless Ring    PD20HCRS
   27    Nozzle Gasket    PD20NG2
   28    20” Aluminum Cover Assembly    PD20HC1008A
   29    Cam Lever Assembly    CLCZKA
   32    14.7 psi Pressure Relief Valve    PDPRV1
   33    20” Aluminum Cover Gasket    PD20HCG08
   69    17.5 - 22 psi Rupture Disk    RD22PDST
   70    Safety Catch    CLSFCZK
   *    Cover Wearplate    A16168

     Cam Lever Assembly Components
   Number    Part Name    Part Nunber

   44    Latch Pin    CLLPCZK
   45    ½” x 2-¼” Clevis Pin    CLP12225CZ
   46    Clamp Stud    CLCSCZK
   47    ½” Pal Nut    RFPN
   48    ½” x 2-3/4” Clevis Pin    CLP12275CZ
   49    1/8” x 3/4” Cotter Pin    RF16271
   50    Cam Lever Latch    CLCZ
   51    ½” Jam Nut    JN12
   57    ½” Flat Washer    A20W
     * Parts not shown above

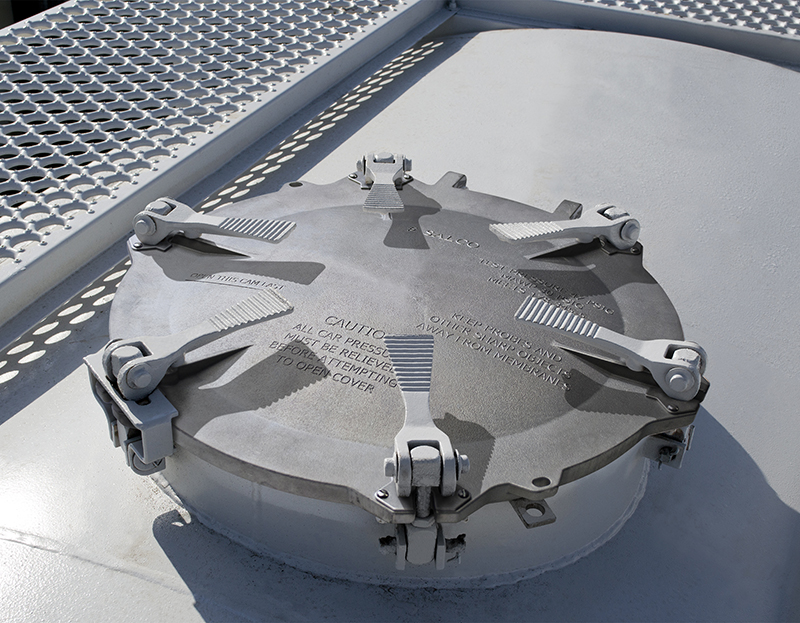

All photos are courtesy of The Andersons - Maumee, OH
www.andersonsinc.com

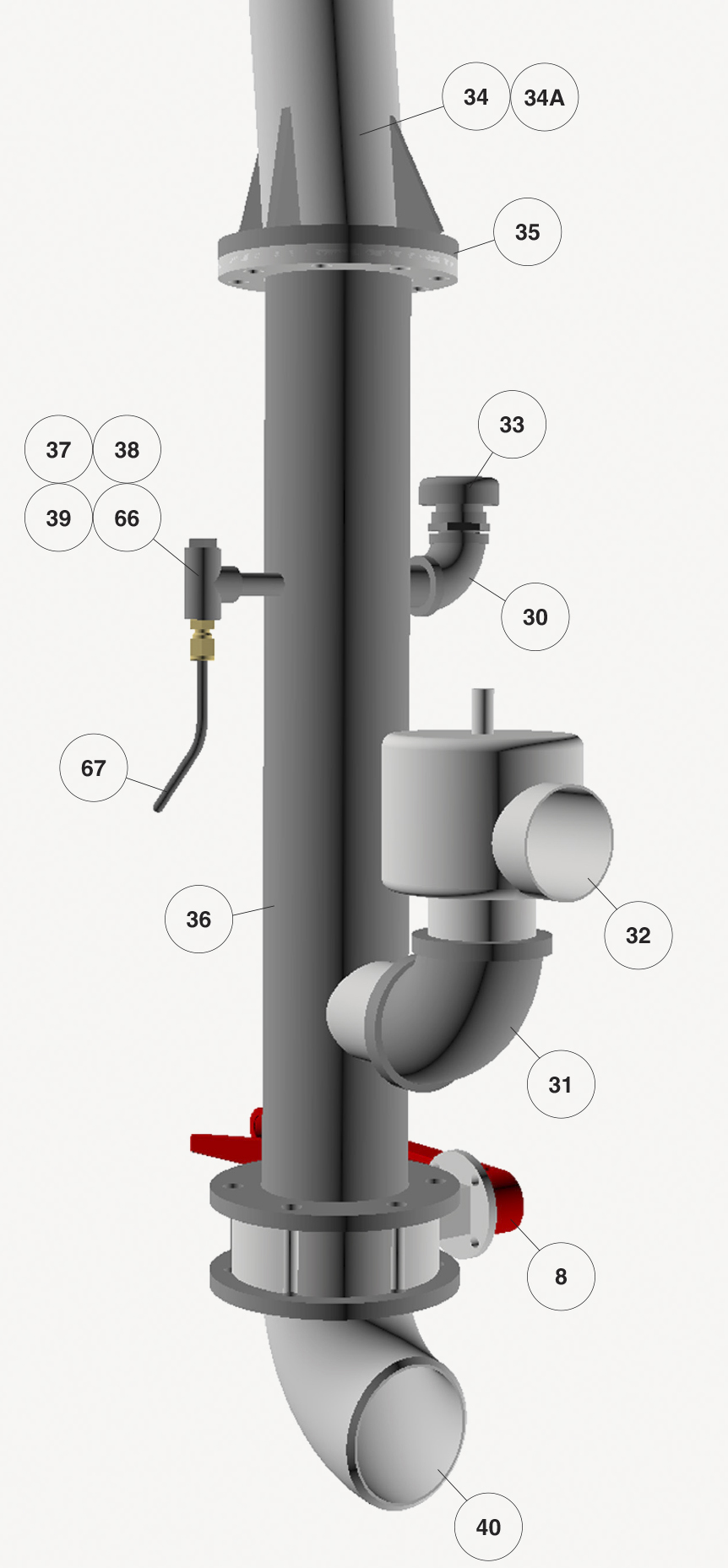

Standpipe
   Number    Part Name    Part Nunber

   8    3” Butterfly Valve    WBV3A
   30    3/4” 90° Elbow    E34A90BW
   31    2” 90° Elbow    E2A90BW
   32    14.7 PSI Safety Relief Valve    PDPRV1
   33    3/4” Vacuum Breaker    VV34B102A
   34    3” Standpipe (113” Long)    PD3ASP100
   34A    3” Standpipe (89” Long)    PD3ASP200
   35    Gasket    FG47802
   36    Double Flange Adapter    DF3A15A
   37    ¼” Close Nipple    N025C
   38    ¼” Female Tee    T025F
   39    ¼” Plug    TC025P
   40    3” Flanged 90° Elbow    PD3A90F03
   66    ¼” Hose Compression Fitting    HCF14B
   67    ¼” Tubing (In Feet)    H14LD
