ACF Pressure Differential Car

Typical 4-Hopper Arrangement Replacement Parts


Outlet 1      |      Outlet 2 & 3      |      Outlet 4      |      Car Roof      |      Standpipe




   Number    Part Name    Part Nunber

   69    4” Pipe (In Feet)    P4A40
   70    5” Pipe (In Feet)    P5A40
   72    Gauge Box Assembly    PD3BF02A
   *    ½” - 13” x 4” U Bolt W/Nuts    SP8465
   *    ½” - 13” x 5” U Bolt W/Nuts    SP8466
     * Parts not shown above

     Pressure Gauge Replacements
   Number    Part Name    Part Nunber

   73    0-30psi Liquid Filled, Back Connection W/Flange    PD4LFGB
   *    0-30psi Dry, Back Connection    PD1010GB
   *    0-30psi Dry, Lower Connection    PD1010GL
   *    0-30psi Silicone Filled, Back Connection W/Flange    PD4LFGFB
   *    0-30psi Silicone Filled, LINE Back Connection    W1212L
   *    0-30psi Silicone Filled, TANK Back Connection    W1212T
     * Parts not shown above
     Note:
     Piping is aluminum. Different materials available by request.
   Gaskets listed are white FDA. Different gasket materials are available if requested.

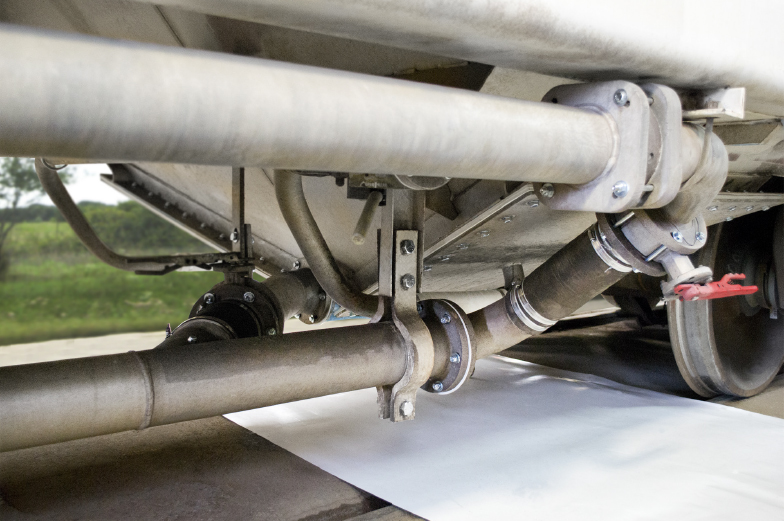

Outlet 1



   Number    Part Name    Part Nunber

  2    5" Double Discharge Lateral    PD5ADD03
   3    4½" ID x 11½" Long Hose    H45115R2
   9    Hopper Plate (Left)    PDHPL01
   10    Hopper Plate (Right)    PDHPR01
   11    2” Air Line Pipe "B" End     PD2AIB01
   12    2” Air Line Pipe "B" End    PD2AIB02
   14    Four Way Valve    AR6J599700
   18    2 3/8” ID x 15 3/8" Long    H2381538R2
   21    5" Discharge Pipe    PD5ADP01
   22    5" Wafer Valve    WBV5A
   23    5” Unloading Pipe Flange    PD5APF01
   24    4” Check Valve    CV4103
   25    4" Wafer Valve    WBV4A
   26    4” Flanged Elbow    PD4AFE02
   27    4” Air Pipe Flange    PD4APF01
   28    5 9/16” ID x 8" Long Hose    H59168R2
   29    4” Flanged Elbow "B" End    PD4AFEB02
   *    Aerator Pad    PD3AP3C23
   *    Pipe Clamp Hanger     AR2J686000
     * Parts not shown above



All photos are courtesy of Economy Coating Systems, Inc. - Camanche, IA

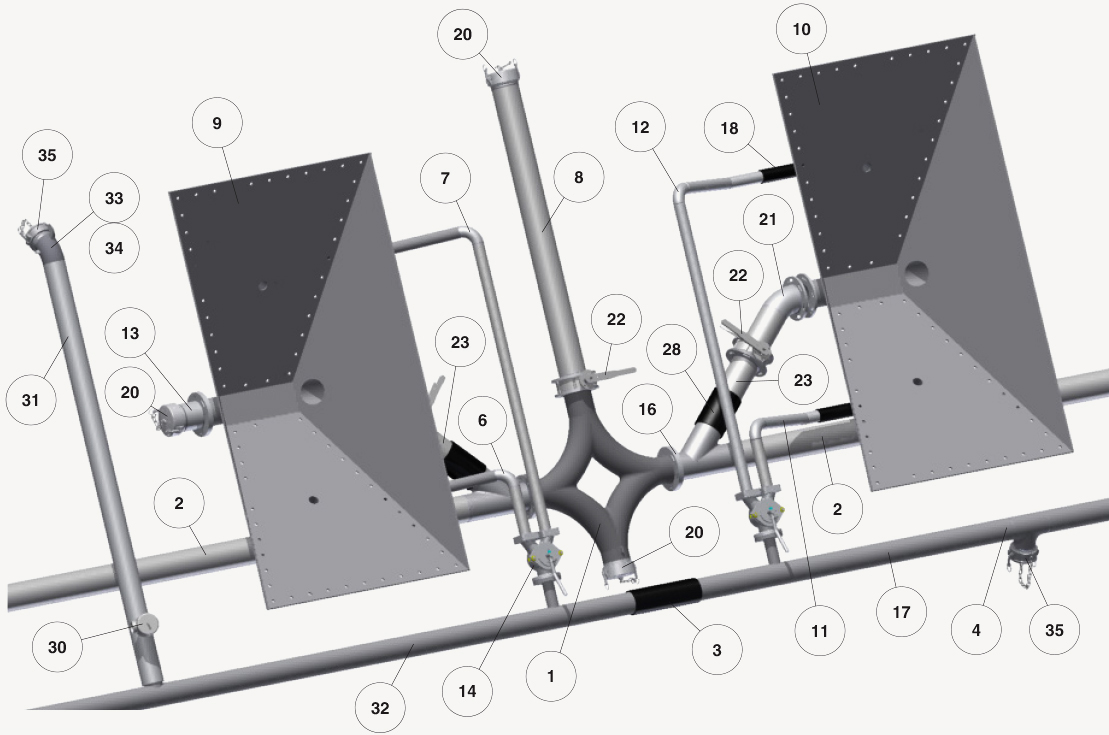

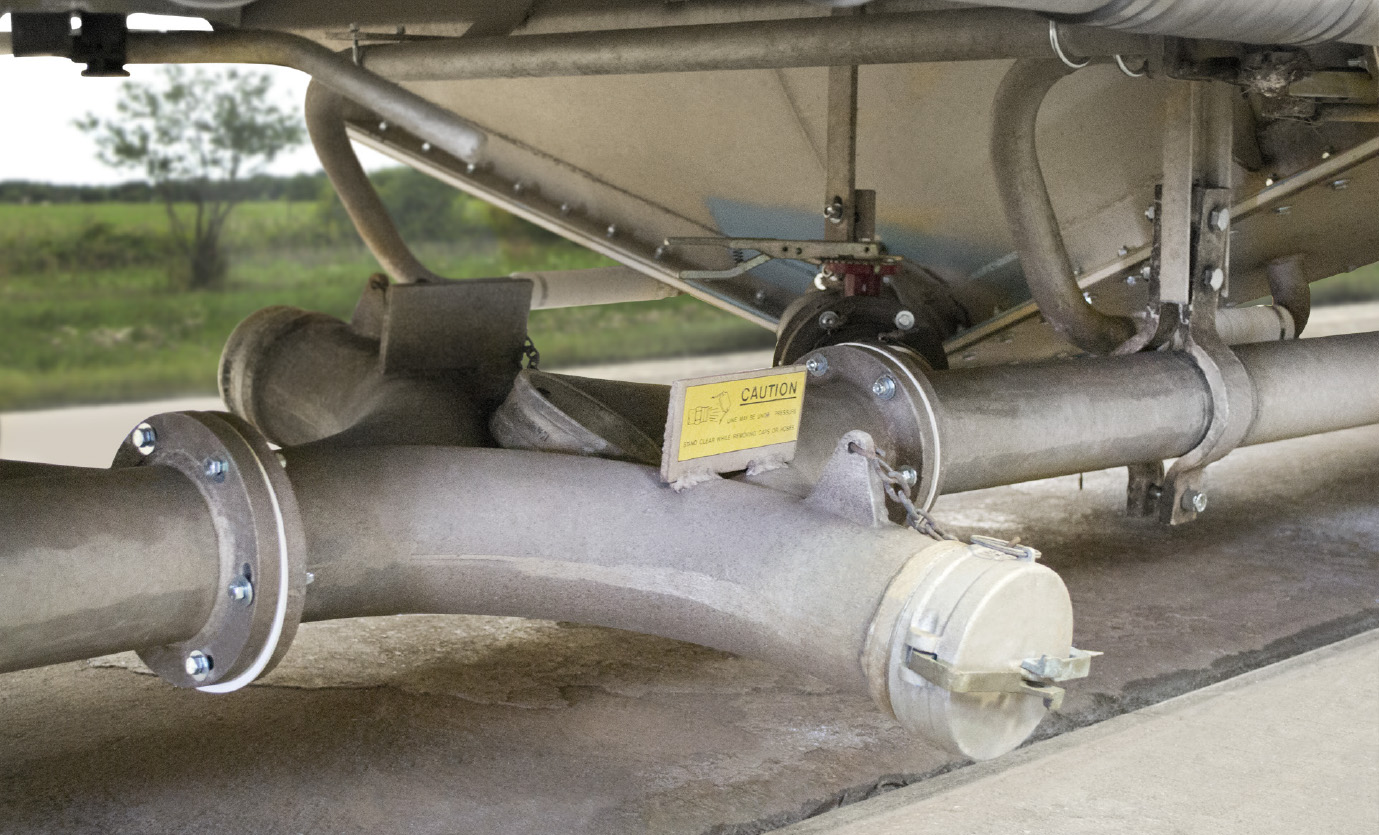

Outlet 2 & 3



   Number    Part Name    Part Nunber

   1    5" Unloading Cross    PD5ACR01
   2
   5” Discharge Lateral    PD5ADD03
   3
   4½" ID x 11½" Long    H45115R2
   4
   4" Air Inlet Tee    PD4ABT01
   6
   2” Air Line Pipe "A" End    PD2AIA01
   7
   2” Air Line Pipe "A" End    PD2AIA02
   8
   5" Kammed Flange    PD5AKF01
   9
   Hopper Plate (Left)    PDHPL01
   10
   Hopper Plate (Right)    PDHPR01
   11
   2" Air Line Pipe "B" End    PD2AIB01
   12
   2”Air Line Pipe "B" End    PD2AIB02
   13
   5" Kammed Flange    PD5AKF02
   14
   Four Way Valve    AR6J599700
   16
   Gasket    PD5FG02
   17
   4” Air Manifold    PD4AIM03
   18    2 3/8" ID x 15 3/8" Long    H2381538R2
   20
   5" Dust Cap Assembly
   PD5ADCA
   21
   5" Discharge Pipe
   PD5ADP01
   22
   5" Wafer Valve
   WBV5A
   23
   5" Unloading Pipe Flange
   PD5APF01
   28
   5 9/16" ID x 8" Long Hose
   H59168R2
   30    14.7 psi Safety Relief
   PDPRV1
   31    Air Manifold
   PD4AIM02
   32    4" Air Manifold
   PD4AIM01
   33    4" 45° Elbow
   4A45SCH40ELB
   34    4" Kammed Adapter
   PDK4AWA
   35    4" Aluminum Dust Cap Assembly
   PD4ADC2A



All photos are courtesy of Economy Coating Systems, Inc. - Camanche, IA

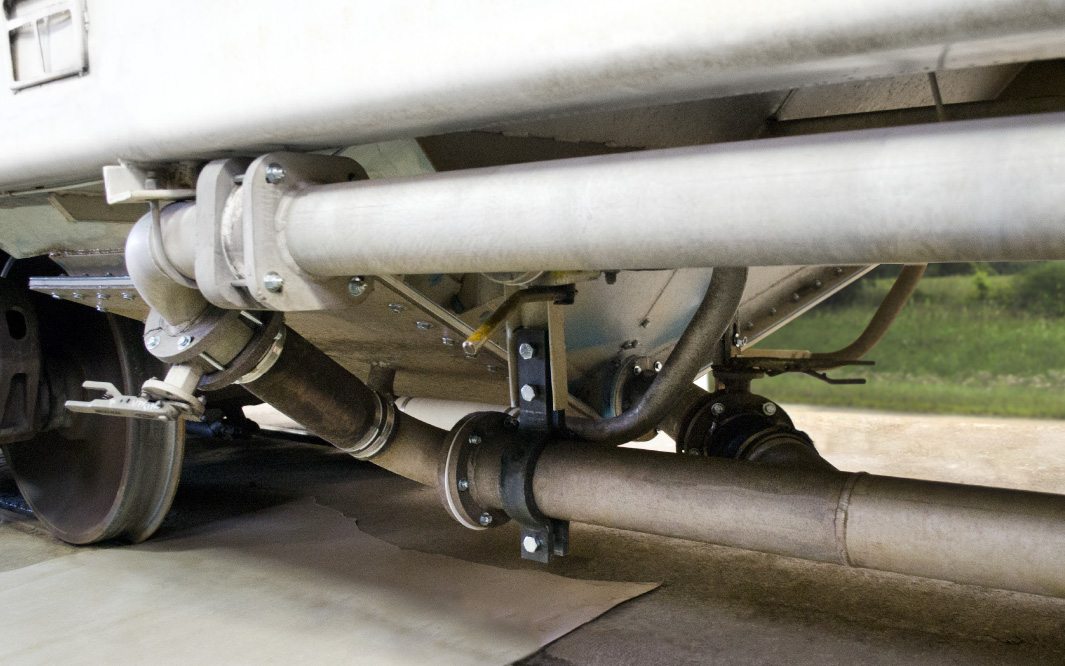

Outlet 4

   Number    Part Name    Part Nunber

   2
   5" Double Discharge
   PD5ADD03
   3
   5” Discharge Lateral w/ Reducer    H45115R2
   5
   4” Flanged Elbow "A" End
   PD4AFEA02
   6
   2” Air Line Pipe "A" End
   PD2AIA01
   7
   2” Air Line Pipe "A" End    PD2AIA02
   9
   Hopper Plate (Left)
   PDHPL01
   10    Hopper Plate (Right)
   PDHPR01
   13    5” Kammed Flange
   PD5AKF02
   14    Four Way Valve
   AR6J599700
   20
   5" Dust Cap Assembly
   PD5ADCA
   24    4” Check Valve
   CV4103
   25
   4” Wafer Flange
   WBV4A
   26
   4" Flanged Elbow
   PD4AFE02
   27
   4” Air Pipe Flange
   PD4APF01
   28
   5 9/16” ID x 8" Long Hose
   H59168R2
   *
   5” Hose Clamp
   HCP0427698
  *   4” Hose Clamp   HCP0427696
   *    2" Hose Clamp
   HCP0427692
    * Parts not shown above


All photos are courtesy of Economy Coating Systems, Inc. - Camanche, IA

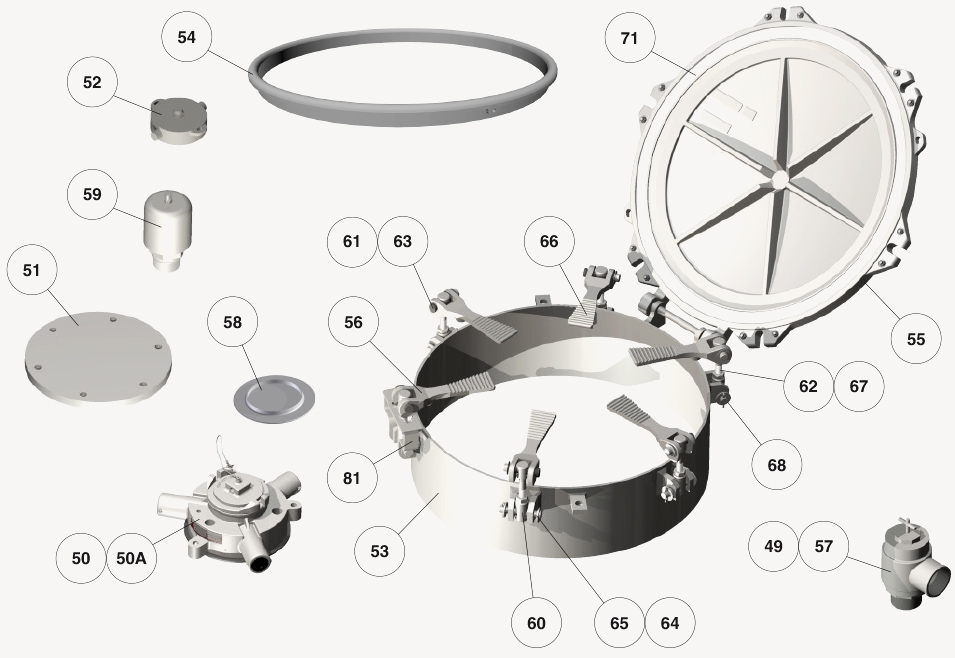

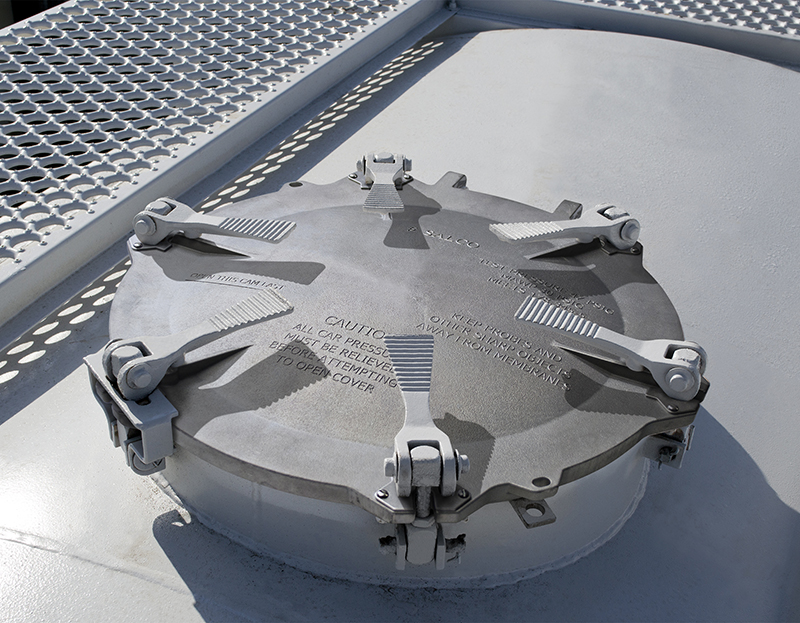

Car Roof


   Number    Part Name    Part Nunber

  49    17 psi Pressure Relief Valve    PDPRV2
   50    Plastic Safety Vent Housing (Female)    PDSVF550FA
   50A    Plastic Safety Vent Housing (Male)    PDSVF550MA
   51    Blind Flange Assembly    PD3SPBF02A
   52    3” Air Inlet Cap    PD3AIC
   53    20” Stainless Ring    PD20HCRS
   54    Nozzle Gasket    PD20NG2
   55    20” Aluminum Cover Assembly    PD20HC1008A
   56    Cam Lever Assembly    CLCZKA
   57    14.7 psi Pressure Relief Valve    PDPRV1
   58    17.5 - 22 psi Rupture Disk    RD22PDST
   59    1.5" Vacuum Relief Valve    VVP15S4102A
   71    20" Aluminum Cover Gasket    PD20HCG08
  75
  Cam Lever Assembly - OEM Replacement
  KS1824
   81
   Safety Catch
   CLSFCZK
   *    Cover Wearplate    A16168
     * Parts not shown above

     Cam Lever Assembly Components
   Number    Part Name    Part Nunber

   60    Latch Pin    CLLPCZK
   61    ½” x 2-¼” Clevis Pin    CLP12225CZ
   62    Clamp Stud    CLCSCZK
   63    ½” Pal Nut    RFPN
   64    ½” x 2-3/4” Clevis Pin    CLP12275CZ
   65    1/8” x 3/4” Cotter Pin    RF16271
   66    Cam Lever Latch    CLCZ
   67    ½” Jam Nut    JN12
   68    ½” Flat Washer    A20W
     * Parts not shown above



Photo courtesy of The Andersons - Maumee, OH
www.andersonsinc.com

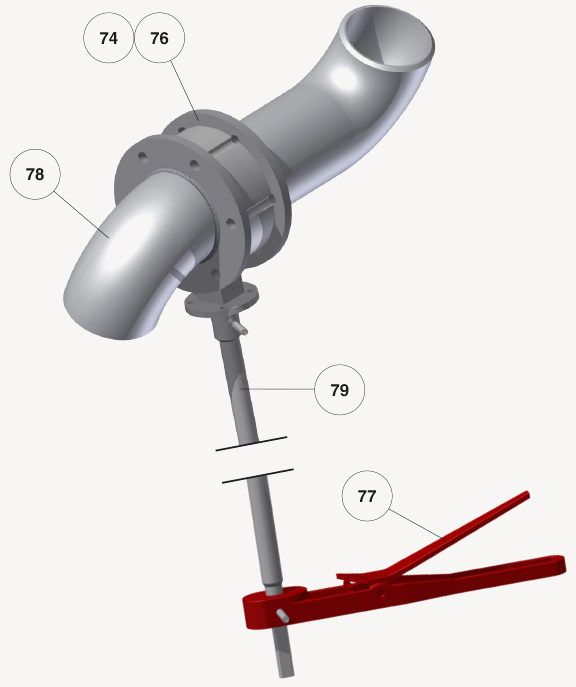

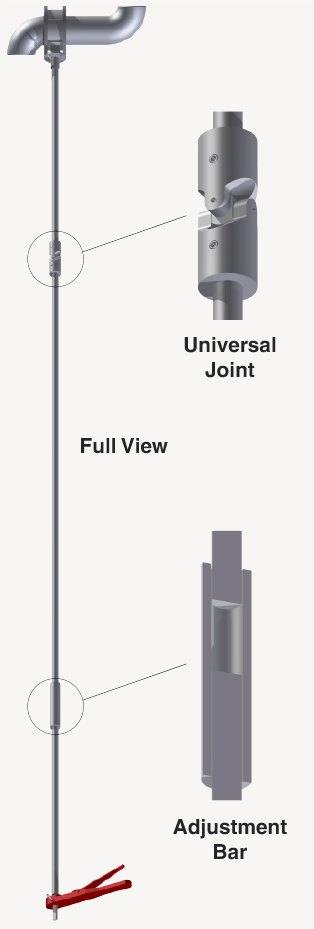

Standpipe
   Number    Part Name    Part Nunber

   74    3” Butterfly Valve    UBV3CACF*
   76    3" Butterfly Valve    WBV3A**
   77    3" Butterfly Valve Handle    WBV3CH
   78    3" 90° Flange    PD3A90F03
   79    Valve Handle Extension Assembly    WBV3CSH03A
   *
   For OEM Replacement Valves

  **   For Use in Salco Valve Handle Extension Assembly

     * Parts not shown above


 ↑ Back to top ↑
