National Steel Car

National Steel Pressure Differential Car

Typical 3-Hopper Arrangement Replacement Parts


Outlet 1 & 2      |      Outlet 3      |      Car Roof      |      Blowdown



   Number Part Name Part Nunber

   7 5" Pipe P5C40-91-00
   13 3” Air Manifold PD3AAM17
   25 3” Square Blind Flange Assembly PD3BF02A
   27 2” Hose H2215R
   30 5” U-Bolt SP8466
   38 3” U-Bolt PD3UBCZR
   47 Guage Box PDGB2A
   48 Pressure Guage PD1010GB
  Note:
  Air piping is aluminum. Product piping is carbon steel. Different materials available by request. Gaskets listed are white FDA. Different gasket materials are available if requested.



All photos are courtesy of National Steel Car - Hamilton, Ontario
www.steelcar.com

Outlet 1 & 2

   Number    Part Name    Part Nunber

   1    Aerator Hopper    PD1AHNP
   2    5” 5" Discharge Pipe    PD5CDT04
   2A    5" Discharge Pipe    PD5CDT02
   3    3” Aerator Pad    PD1AP3C23
   4    4½" Blind Flange Assembly    PD545CCPA
   5    5” x 8” 5" Discharge Lateral    PD5DDL01
   8    5" Nipple Grooved    N58CVG
   9    2” 5" Y-Pipe    PDD5Y
   10    5" Pipe Bend    PD5CPB04
   14    5" Butterfly Valve    UBV5APCA
   17    5" Aluminum Dust Cap w/Regular Arms    PD5ADC2A
   17A    5" Plastic Dust Cap w/Regular Arms    PD5PDC2A

   Number    Part Name    Part Nunber

   17B    5" Aluminum Dust Cap w/Crossover Arms    PD5ALC2A
   17C    5" Plastic Dust Cap w/Crossover Arms    PD5PLC2A
   *    5" Dust Cap Gasket    PD5DCGW
   20    Compression Coupling 5"    PD556CC8
   21    2" Ball Valve    SSVMH2.A9-2
   22    2" Hose Barb    HB2A
   23    5" Pipe Clamp    PD577C
   27    2" Hose    H2215R
   *    Discharge Pipe Clip    PD5CDTCL
   *    5" U-Bolt    SP8466
   *    Shackle And Chain    PD5YCSA
   *    Aerator Hopper Bolt Kit    PDPADKIT2
       * Parts not shown above
Outlet 3

   Number    Part Name    Part Nunber

   1    Aerator Hopper    PD1AHNP
   2    5" Discharge Pipe    PD5CDT04
   2A    5" Discharge Pipe    PD5CDT02
   3    Aerator Pad    PD1AP3C23
   6    5" Discharge Lateral    PD5DDL01F
   11    3" Flanged Tee    PD3ABT08
   12    3" Flanged Elbow    PD3A90F14
   14    5" Butterfly Valve    UBV5APCA
   15    3" Butterfly Valve    WBV3A
   16    3" Air Inlet Assembly    PD3A90F16
   18    3" Adapter    K3AFTMA
   *    3" Dust Cap Gasket    PD3DCGW
   *    4½" Blind Flange Assembly    PD545CCPA

   Number    Part Name    Part Nunber

   19    3" Aluminum Dust Cap w/Regular Arms    PD3ADC2A
   19A    3" Plastic Dust Cap w/Regular Arms    PD3PDC2A
   19B    3" Aluminum Dust Cap w/Crossover Arms    PD3ALC2A
   19C    3" Plastic Dust Cap w/Crossover Arms    PD3PLC2A
   20    5" Compression Coupling    PD556CC8
   21    2" Ball Valve    SSVMH2.A9-2
   22    2" Hose Barb    HB2A
   24    3" Flange Gasket    PD3SG02
   26    3" Check Valve    KSVA1011FG
   27    2" Hose    H2215R
   36    3" Butterfly Valve    UBV3APCA
   38    3" U-Bolt    PD3UBCZR
   *    Discharge Pipe Clip    PD5CDTCL
   *    Aerator Hopper Bolt Kit    PDPADKIT2
       * Parts not shown above

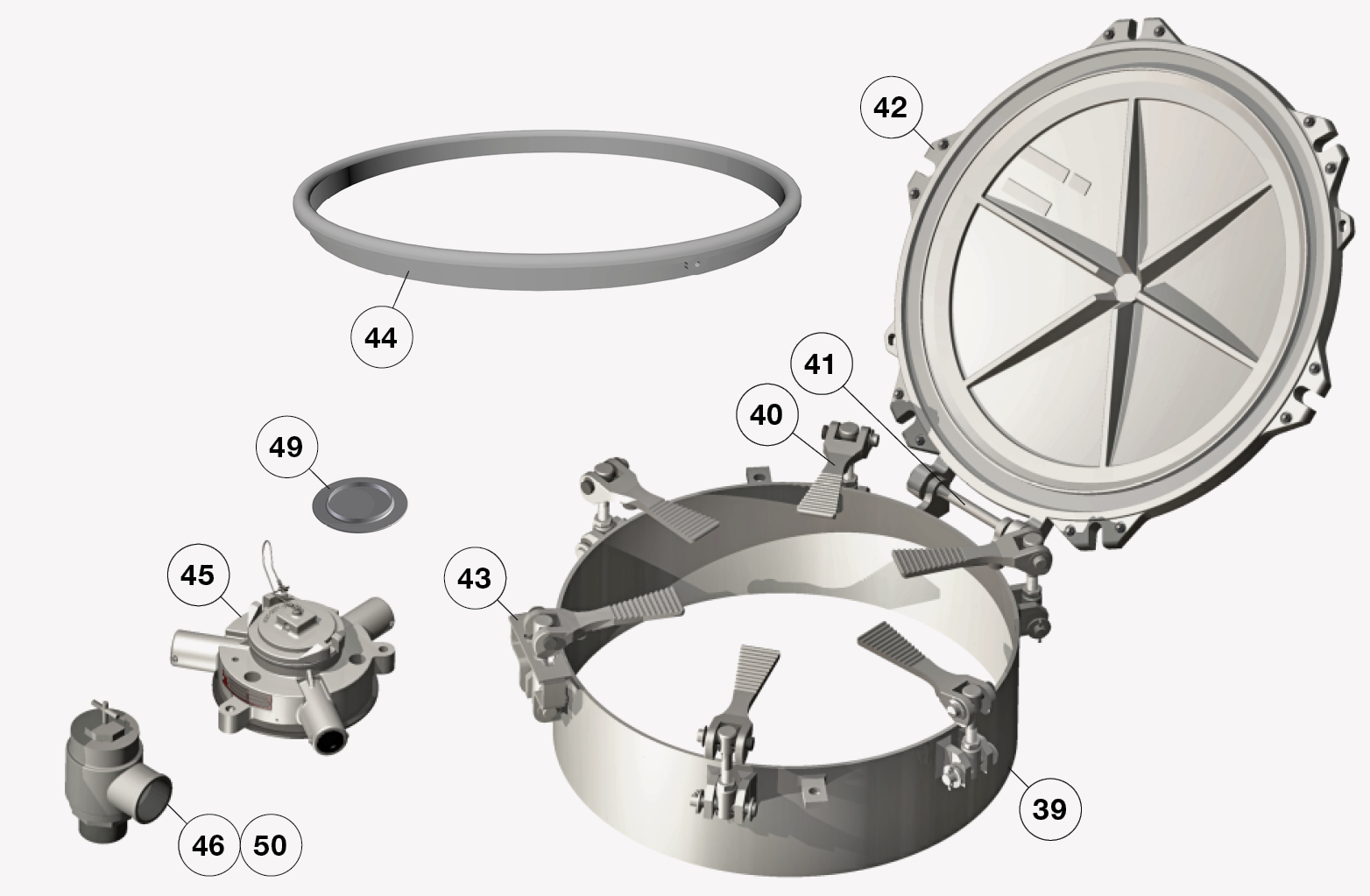

Car Roof


   Number    Part Name    Part Nunber

   39    20" PD Nozzle    PD20HCRS
   40    CAM Lever    CLCZKA
   41    Hinge Pin    CLP127CA
   42    20" Hatch Cover    PD20HC1002A
   43    Safety Catch    CLSFCZK
   44    Nozzle Gasket    PD20NG2
   45    Plastic Safety Vent Housing    QI261DGA
   46    17psi Pressure Relief Valve    PDPRV2
   49    22psi Rupture Disc    RD22PDST
   50    14.7psi Pressure Relief Valve    PDPRV1

     Cam Lever Assembly Components
   Number    Part Name    Part Nunber

   *    Cam Lever    CLCZ
   *    ½” Clevis Pin    CLP12275CZ
   *    Clevis Pin    CLP12225CZ
   *    ½” - 20" Clamp Stud    CLCSZK
   *    ½" Pal Nut    RFPN
   *    Latch Pin    CLLPCZK
   *    Flat Washer SAE    A20W
   *    ½” - 13" Jam Nut    JN12
   *    1/8" Cotter Pin    RF16271
     * Parts not shown above



All photos are courtesy of National Steel Car - Hamilton, Ontario
www.steelcar.com

Blowdown
   Number    Part Name    Part Nunber

   28    1/4" Hose    H14LD
   32    Vent Assembly    PD3SVA02
   33    Valve Handle Extension Assembly    WBV3CSH03A
   34    3" Pipe Elbow    PD3A90F15
   35    1 1/2” Vacuum Relief Valve    VVP15S4102A
   51    3” Butterfly Valve    WBV3ACB
