ACF 5031
ACF 5031 Outlet Gate
Replacement Parts

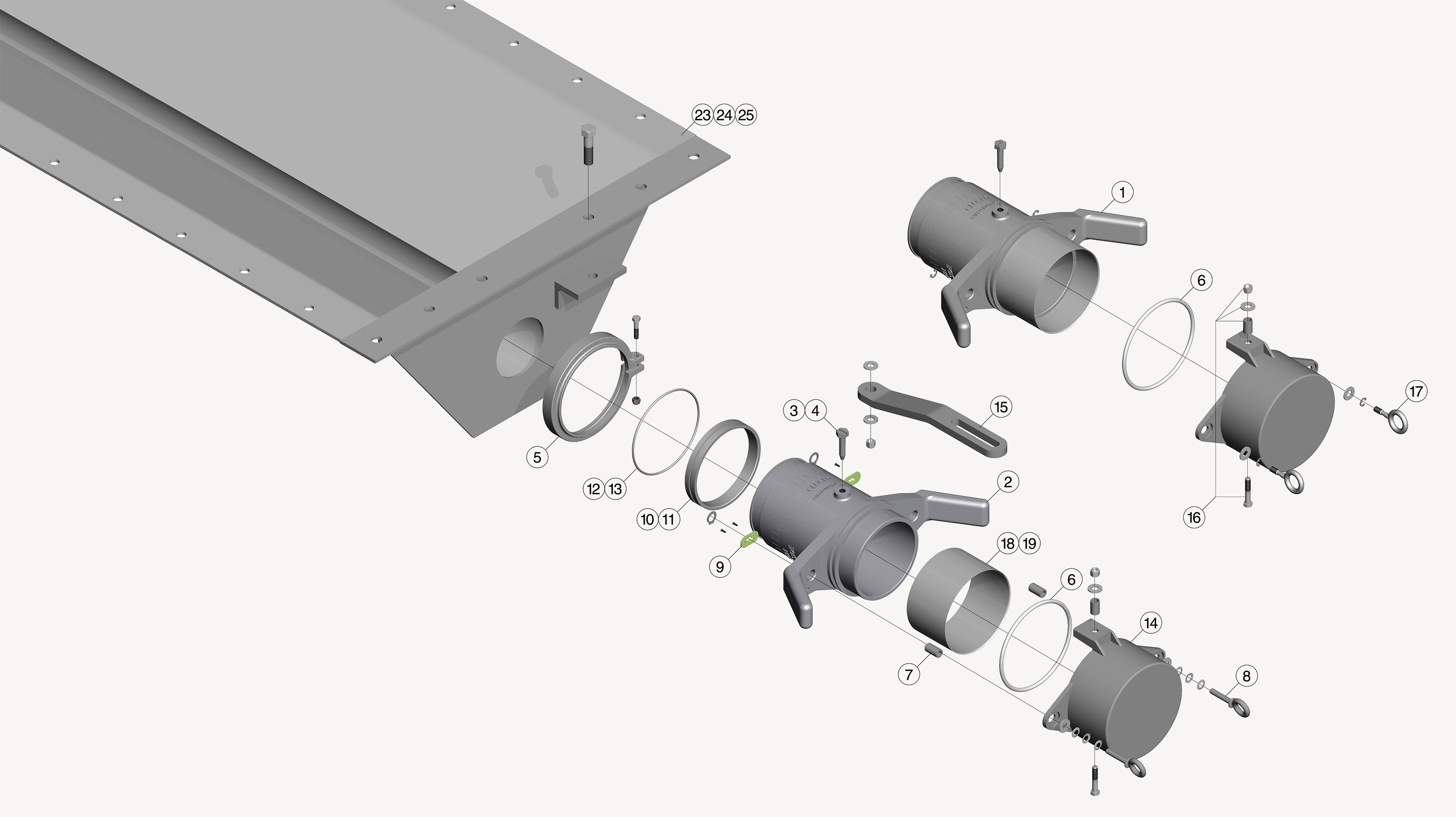

Click on gate part number to view more detail
|
Number |
Description |
Part Number |
| 1 | End Adapter Complete Assembly Eyebolt Style | EA103EA |
| 2 | End Adapter Complete Assembly Kamlock Style | EA103KA |
| 3 | 1/2" - 20 Special Screw | EA103SS |
| 4 | 3/4” - 16 Special Screw (New Style 37 & up) | EA103SL |
| 5 | Deflector Casting Assembly | EA103DEFA |
| NUT - ACF 90002055 BOLT - ACF 90034048 | ||
| 6 | Cap O-Ring | EA103OR |
| 7 | Kamlock With Grip Ring (Only) Silican Bronze | KL103 |
| 8 | Kamlock Assembly Silican Bronze | KL103A |
| (Includes Grip Ring, Backplate And Screws) | ||
| 9 | Kamlock Backplate Assembly (Includes Screws) | KL103BPA |
| 10 | Molded White Bearing | MTB103 |
| 11 | Molded White Bearing Assembly (Includes White O-Ring) | MTB103A |
| 12 | O-Ring (White Vinyl) | MTB103OR |
| 13 | O-Ring (Black Buna-N) | MTB103ORB |
|
Number |
Description |
Part Number |
| 14 | Outlet Cap (ABS Plastic) | RP103 |
| 15 | Support Arm | RP103SCA |
| 16 | Outlet Cap Mounting Assembly | RP103MA |
| 17 | Outlet Cap Eyebolts (2) For Eyebolt End Adapter | RP103EBA |
| 18 | Stainless Steel Nozzle 3 5/8” Salco Manufactured End Adapter Only | RPSN103 |
| 19 | Aluminum Nozzle For 3 5/8” ACF Manufactured End Adapter Only | RPSN103A |
| *20 | Outlet Cap Assembly (Cap With Silican Bronze Kamlocks) | RP103KA |
| *21 | Outlet Cap With Mounting Assembly | RP103A |
| *22 | Cap Mounting Assembly With Silican Bronze Kamlock Attached | RP103AQ |
| 23 | Outlet Gate Mounting Flange Gasket (White) | GGTR111 |
| 24 | Outlet Gate Mounting Flange Gasket (White) | GGTR111UC |
| 25 | Outlet Gate Mounting Flange Gasket (Tri-Bulb) | TBG111 |
| *26 | Outlet Gate Mounting Flange Gasket - ACF Bolt Pattern | GG35 |
| Call For Details | ||
| *27 | 1” Spacer | RP103SS |
|
* Items Not On Drawing |
