ACF 5131 & 5134
5131, 5134 Outlet Gate
Replacement Parts

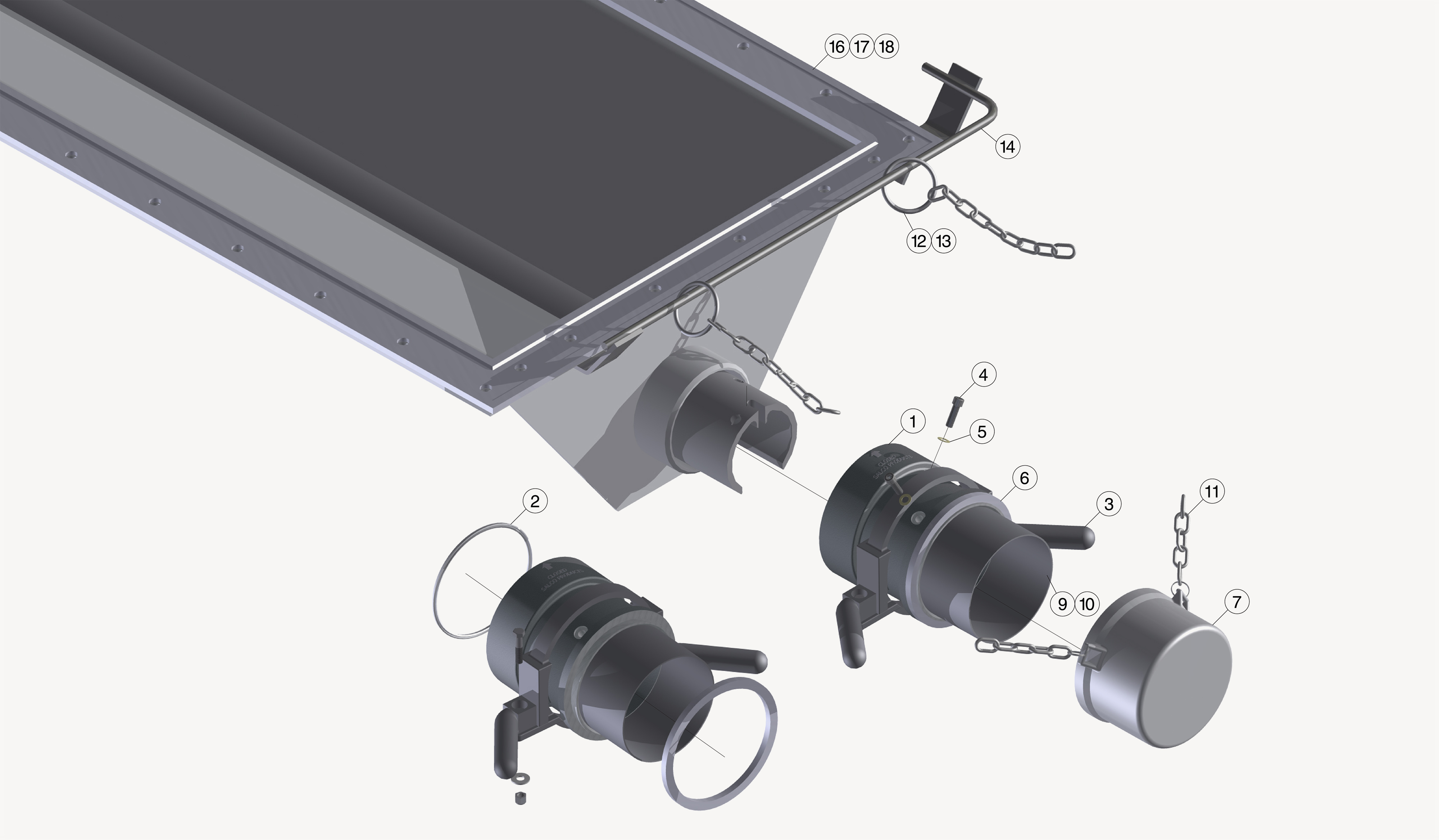

Click on gate part number to view more detail
|
Number |
Description |
Part Number |
| 1 | End Adapter Assembly With Handle | EA111AH |
| 2 | End Adapter U-Cup Seal (White) | EA111FDAU |
| 3 | Handle Assembly (Includes Nuts and Bolts) | EA111HANA |
| 4 | Control Tube Mounting Bolt | RTHB124S |
| 5 | Nylon Stat-O-Seal Gasket | RTHB124W |
| 6 | Outlet Nozzle Gasket (White) | ONG1115 |
| 7 | Outlet Cap (ABS Plastic) | RP111 |
| *8 | Cap Assembly (Includes 7 & 11) | RP111SCA |
| 9 | Stainless Steel Nozzle | RPSN111 |
| For Salco Manufactured End Adapter Only | ||
| 10 | Aluminum Nozzle (For ACF Manufactured | RPSN111A |
| End Adapters Only) | ||
| 11 | Chain Kit (Includes 4 Attachment Links & 2-3" Rings) | SCA111 |
| Chain Kit (Includes 2 Attachment Links & 2-3" Rings) | SCA162 | |
| 12 | 3" Ring | SCA111R3 |
| 13 | 2" Key Ring | SCA115R2 |
|
Number |
Description |
Part Number |
| 14 | Safety Chain Bar | SCB111 |
| *15 | Safety Chain Bar With Cap Attached | SCB111A |
| 16 | Outlet Gate Mounting Flange Gasket (White) | GGTR111 |
| 17 | Outlet Gate Mounting Flange Gasket (White) | GGTR111UC |
| 18 | Outlet Gate Mounting Flange Gasket (Tri-Bulb) | TBG111 |
| *19 | Outlet Gate Mounting Flange Gasket - ACF Bolt Pattern | GG35 |
| Call For Details | ||
| *20 | 3/8" x 1 1/4" Tamper Resistant Screw | RTHBTRS |
| *21 | Tool For RTHBTRS | RTHBTRST |
| *22 | 1/16" Shim For Bail | ABS116 |
| *23 | 1/8" Shim For Bail | ABS18 |
| *24 | Reattachment Link | SCA1L |
| *25 | Safety Chain Bar With RP205 Cap Attached | SCB205A |
| *26 | Mounting Bolt Kit (1/2"-13" x 2") | MBKA200 |
| *27 | Mounting Bolt Kit (1/2"-13" x 2 1/4") | MBKA225 |
| *28 | Tool 7/32 Tamper Resistant Socket 3/8" Drive | S5536A18 |
|
* Items Not On Drawing |
