ACF 5135 & 5235
5135, 5235 Outlet Gate
Replacement Parts

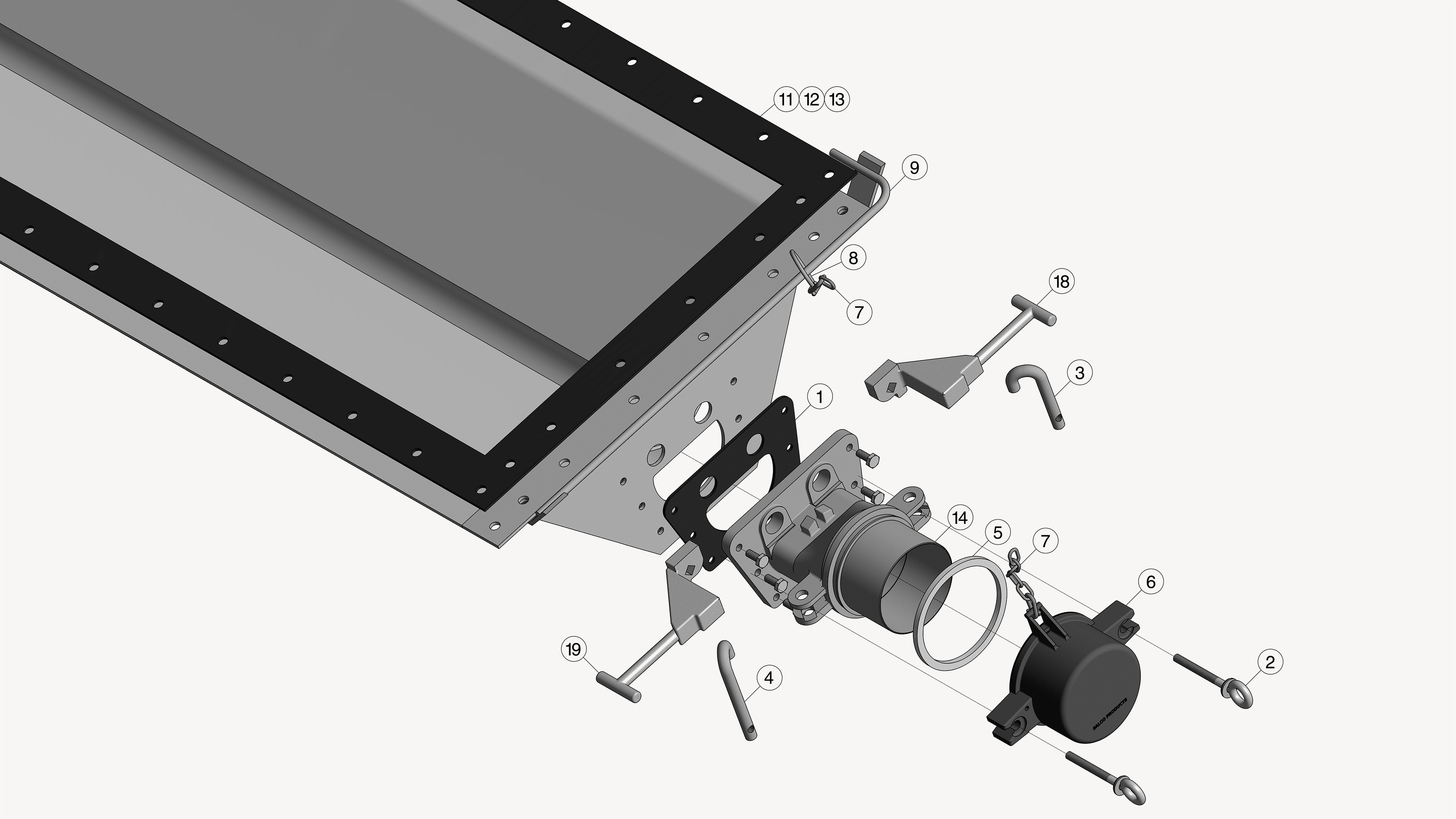

Click on gate part number to view more detail
|
Number |
Description |
Part Number |
| 1 | End Adapter Gasket | EA205EAG |
| 2 | Steel Eyebolt With Washer | EB205SA |
| 3 | Right J Bolt (Short) | EA205RJ |
| 4 | Left J Bolt (Long) | EA205LJ |
| 5 | Outlet Nozzle Gasket (White) | ONG1115 |
| 6 | Outlet Cap (ABS Plastic) | RP205 |
| (Fits 5135, 5124, 5235, 5231) | ||
| 7 | Chain Kit (Includes 2 Attachment | SCA205 |
| Links And 1-3” Ring) | ||
| 8 | 2” Key Ring | SCA115R2 |
| 9 | Safety Chain Bar | SCB111 |
| *10 | Safety Chain Bar With Cap (RP205) Attached | SCB205A |
| 11 | Outlet Gate Mounting Flange Gasket (White) | GGTR111 |
|
Number |
Description |
Part Number |
| 12 | Outlet Gate Mounting Flange Gasket (White) | GGTR111UC |
| 13 | Outlet Gate Mounting Flange Gasket (Tri-Bulb) | TBG111 |
| 14 | Aluminum Outlet Nozzle For ACF End Adapter | RPSN111A |
| *15 | Reattachment Link | SCA1L |
| *16 | Cap Assembly (Cap & Chain Kit) | RP205SCA |
| *17 | End Adapter Casting For 5135 | AR50094102 |
| 18 | Handle (Right) | AR50094653 |
| 19 | Handle (Left) | AR50094642 |
| *20 | Outlet Gate Mounting Flange Gasket For 5235 | GG5235 |
| *21 | Mounting Bolt Kit (½”-13” x 2”) | MBKA200 |
| *22 | Mounting Bolt Kit (½”-13” x 2 ¼”) | MBKA225 |
| *23 | End Adapter Assembly For ACF 32 Bolt Hole | AR00001778 |
|
* Items Not On Drawing |
