Thrall-Edsco
Thrall Edsco Outlet Gate
Replacement Parts

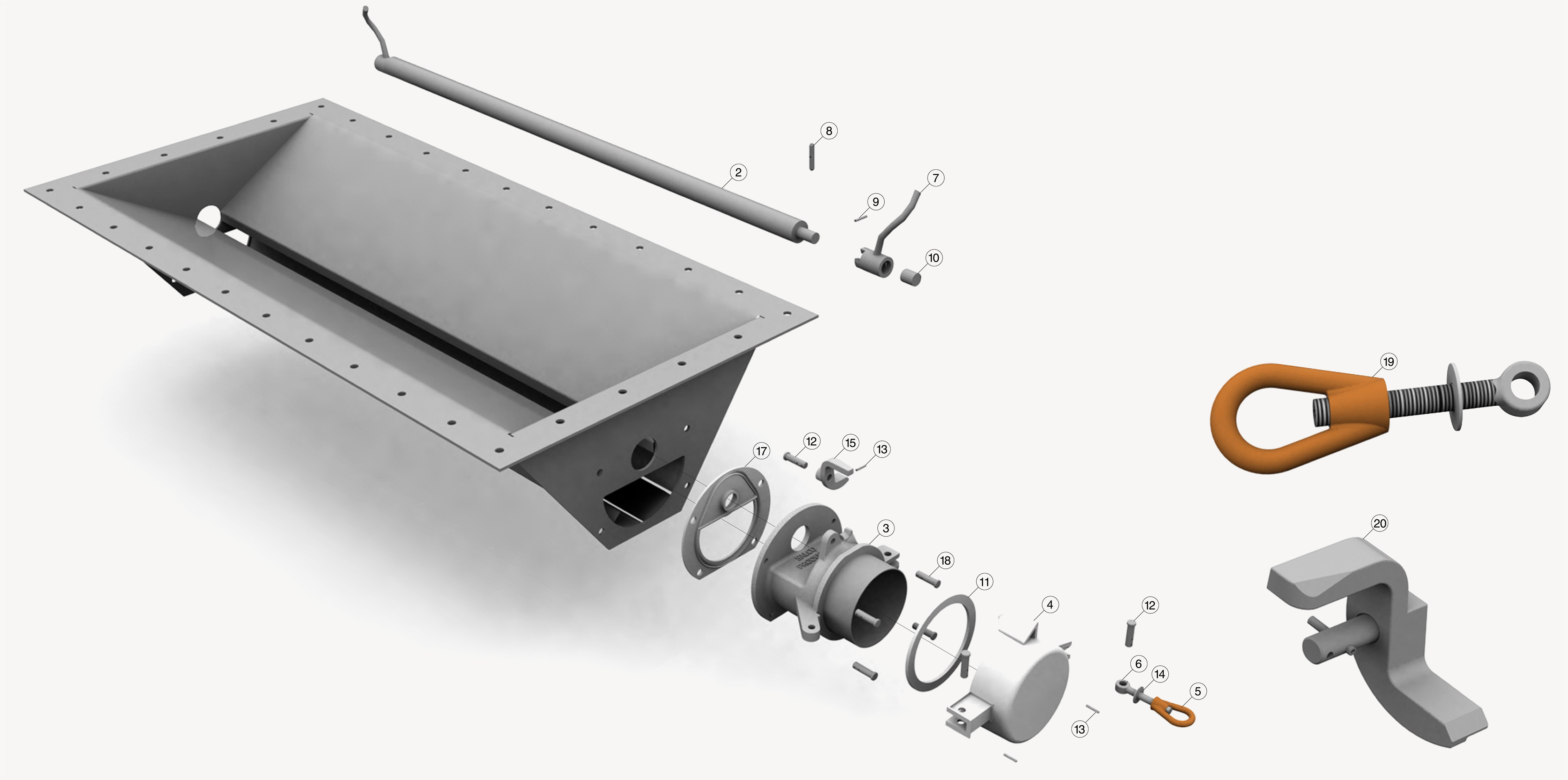

Click on gate part number to view more detail
|
Number |
Description |
Part Number |
| 1 | Gate Assembly (Includes Everything Shown) | THGA001001 |
| 2 | Valve Rod | THGM166004 |
| 3 | End Adapter | EAED100 |
| 3 | End Adapter Assembly | EAED100A |
| 4 | Dust Cap | RP100UT |
| 5 | Eye Nut | T2EN / T2ENT |
| 6 | Eye Bolt | T375SB / T375SBT |
| 7 | Handle | THGM166005 |
| 8 | Turning Pin | THGM166003 |
| 9 | Roll Pin | RP98296A897 |
| 10 | Shaft Sleeve | THGM166006 |
| 11 | Dust Cap Gasket | ONG712E |
|
Number |
Description |
Part Number |
| 12 | Headed Pin (Long) | TUCP |
| 13 | Roll Pin | T532RP |
| 14 | Flat Washer | TSW916 / TSW916T |
| 15 | Shaft Lock | THRASL |
| *16 | Operating Inst. Decal (not shown) | THMD100797 |
| 17 | End Adapter Gasket | THGM162002 |
| 18 | Hex Bolt 3/8”-16 x 1 3/4” | EA111B |
| 19 | Eyebolt Assembly | T375SBA / T375SBAT |
| 20 | Shaft Lock Assembly | THRASLA |
| *21 | Hex Lock Nut 3/8”-16 (not shown) | EA111N |
| *22 | Flat Washer 3/8” USS (not shown) | KL103FW |
| *23 | Mounting Gasket (not shown) | GG35 / GGTR111 |
| * Items Not On Drawing |
