YSD 271 & 289

YSD 271 Outlet Gate

Replacement Parts

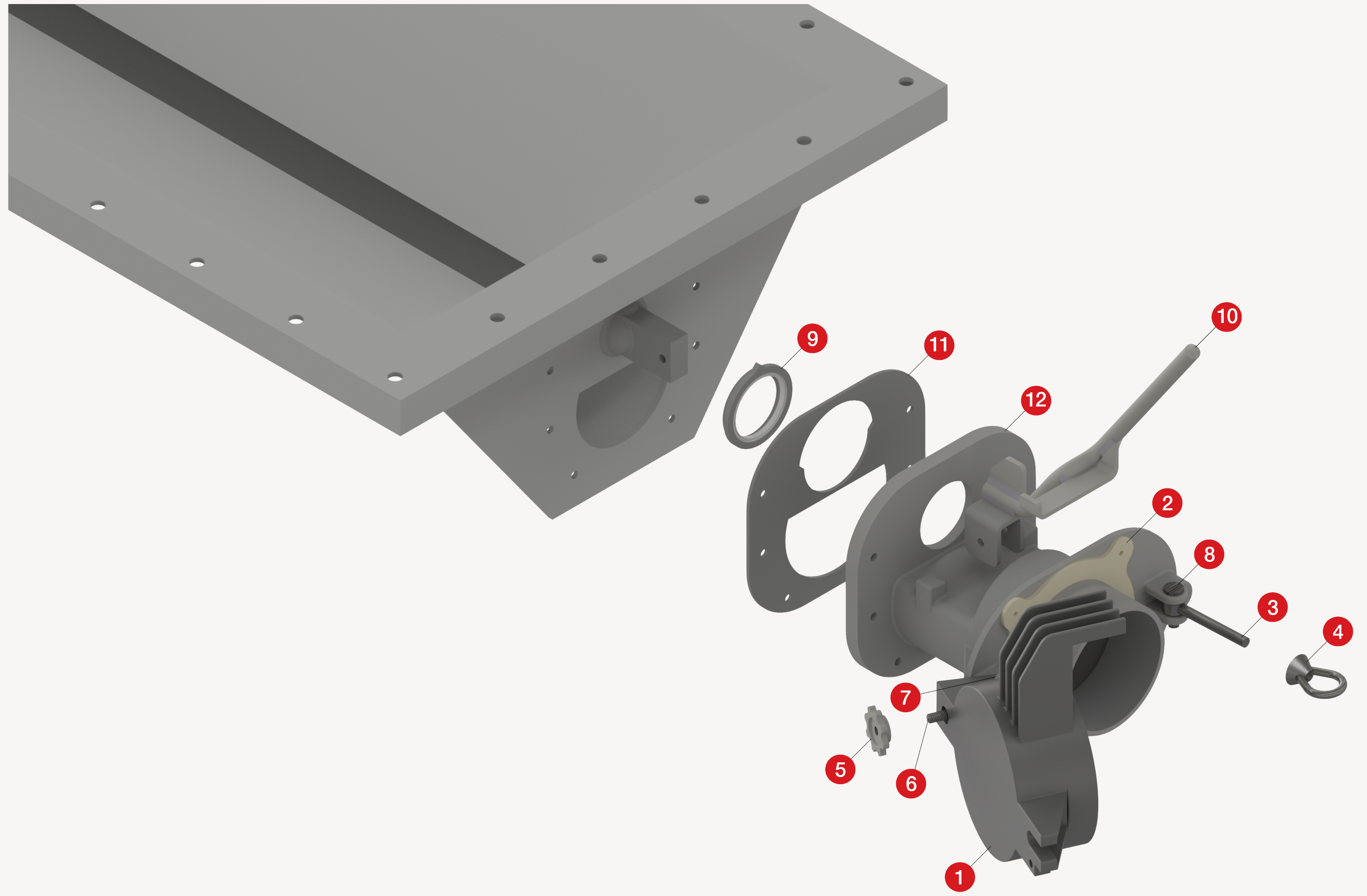

Click on gate part number to view more detail


Number

    Description

Part Number

1    Plastic Outlet Cap (271D) YSDG-73883
1    Plastic Outlet Cap (271J/K/M, 289 series) YSDG-73670
2    Outlet Nozzle Gasket EAG271DE
3    Swing Bolt (eye-nut side) YSD4SB
4    Eye Nut (all) YSD2EN
5    Compression Knob (all) YSD134CK
6    Eyebolt (compression side) YSD358SB
7    Clevis Pin (271J/K/M, 289 series) YSD334CP
7    Celvis Pin (271D) YSD225CP
8    Clevis Pin (289 series) YSD134CP
9    Valve Seal Assembly YSDZG70333
10    Handle YSDZG64135
11    End Adapter Gasket EA289EAG26
12    End Adapter Casting (Anodized) WHMKE10496


Number

   Description

Part Number

*13    Mounting Gasket (289 series) GGTR35 / GGTR3125
*14    Mounting Gasket (271 series) GG35 / GGTR111
*15    Roll Pin (All) T532RP
*16    End Adapter Valve Access (271D YSD271G
*17    Plastic Rivet For Cap Gasket Fastener YSDG79164
*18    Handle Grip YSDG79836
*19    End Adapter (Bolt On) YSDZG64166
*20    Control Valve (271 J,K,M) YSDG65896
*21    Control Valve (289 A,B) YSDG70708
*22    Center Valve For YSD 271 WHMKE10479
*23    Valve Indicator Label YSDG73933
*24    End Adapter Casting (Non-Anodized) YSDZG70716
*25    Mounting Bolt Kit (32 Bolt Hole)(½”-13” x 2 ¼”) MBKA225
*26    Mounting Bolt Kit (38 Bolt Hole)(½”-13” x 2 ¼”) MBKA225T
     * Items Not Shown On Drawing
