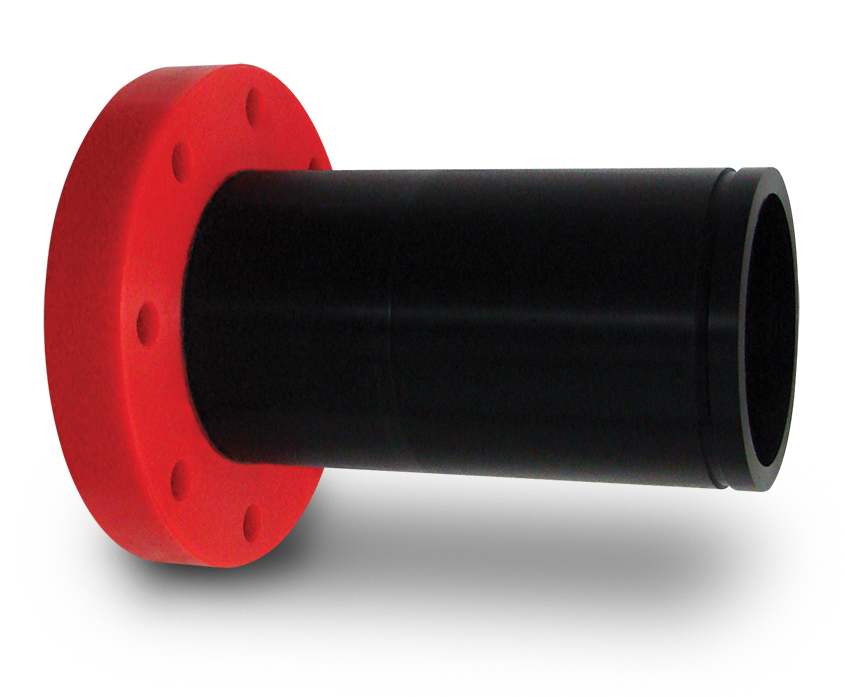

Pipe Stubs

Variety of Sizes
Economical and lightweight products that can easily be installed by one worker. Salco's pipe stubs are produced from Salco PE(UHMWPE), making tubes six times more abrasive resistant than its steel counterpart.

Stubs are available in a variety of sizes, flanges can be constructed to suit any inlet/outlet application. Tube length can be cut to fit each application. Pipes and flanges can withstand temperatures between -40°F and +180°F. Concentric serrations on the flange enables positive sealing of gaskets.

Customizable Sizes Available

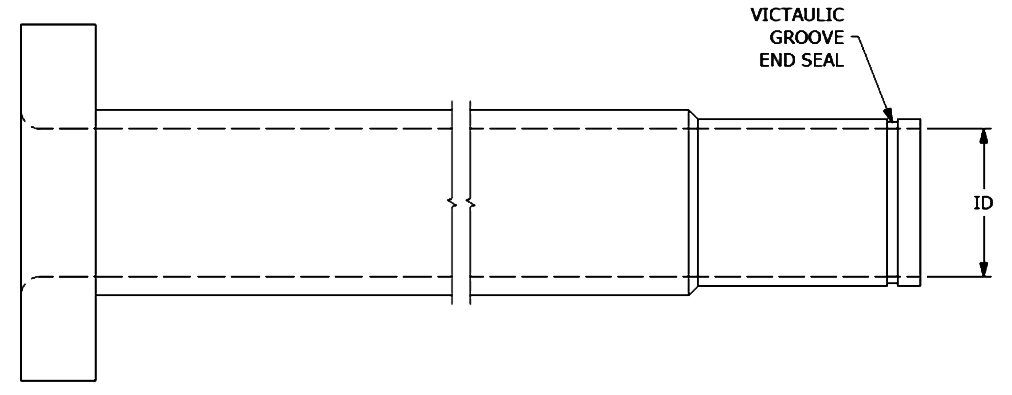

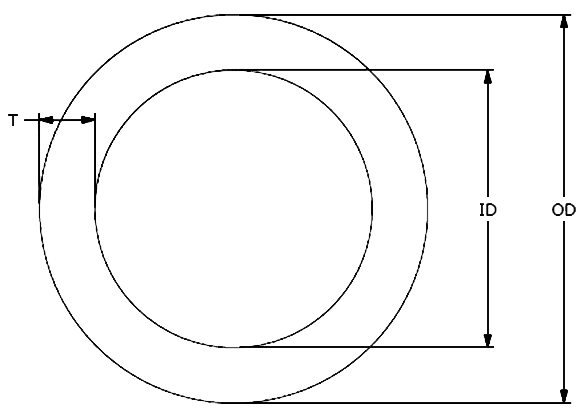

   Size
   OD  (Outer Diameter)
    ID  (Inner Diameter)
   T  (Thickness)




   1"
   1.50"
   0.90"
   0.30"
   1½"
   2.10"
   1.14"
   0.48"
   2"
   2.52"
   1.44"
   0.54"
   2½"
   3.00"
   1.83"
   0.59"
   3"
   3.53"
   2.47"
   0.53"
   3"
   4.12"
   2.88"
   0.62"
   4"
   5.09"
   3.89"
   0.60"
   6"
   7.00"
   5.50"
   0.75"
